KataGo Setup: Windows, macOS & Linux Autoconfiguration

Published on April 6, 2026 by StoneBase Team

KataGo is one of the strongest open-source Go AIs available today. Whether you want to understand where you went wrong in a game, explore alternative moves, or study professional-level play, KataGo gives you move-by-move analysis with win rates, score estimates, and best variations.

Since StoneBase 1.0.65, you can set up KataGo directly in the app: the assistant detects your computer, downloads compatible files and tests analysis before you confirm. Start with automatic setup below, or use the manual instructions if you want to choose your own engine binary, neural network and analysis configuration.

Automatic setup in StoneBase

The screenshots show the actual interface in an isolated demonstration with example values. The selected files and versions depend on your computer and may change.

1. Install StoneBase and open Engine settings

Download StoneBase from the official latest release: use the .msi installer on Windows, .dmg on macOS, or .deb on Linux. Install and open the app, then go to Settings → Engine.

On a fresh installation, click Autoconfigure KataGo. The assistant appears only when there are no saved analysis-engine settings; even a partially saved configuration hides it. If you have already configured an engine, use the manual settings below.

StoneBase Engine settings with the Autoconfigure KataGo button before setup
Start the assistant from Engine settings.

2. Let StoneBase detect, download and test

StoneBase checks the operating system, architecture, compatible hardware and available memory, selects a compatible KataGo build, and downloads the Strongest confidently-rated network from the official KataGo networks catalogue. It prepares an analysis configuration and runs a small, real analysis query on your computer before offering to save anything. The chosen build depends on compatibility and the available catalogue, so a particular GPU runtime is not guaranteed.

KataGo automatic setup showing detected hardware and network download progress
Watch the detected backend and download progress.

On macOS: approve the KataGo installation

Automatic setup requires Homebrew to be installed already. StoneBase asks permission to install KataGo with Install with Homebrew and shows the command it will run:

brew install --force-bottle katago

This consent installs KataGo, not Homebrew. The executable and its libraries stay in Homebrew. The network, analysis configuration and other managed files are stored inside your configurable StoneBase data folder. On Windows and Linux, the assistant also manages the downloaded engine inside that folder.

macOS consent screen showing the Homebrew command for installing KataGo
Review the displayed KataGo installation command before approving it.

3. Review the result and confirm

Once the real analysis test succeeds, review the detected backend, file paths, proposed analysis settings and test result. Nothing is saved until you click Confirm and save.

KataGo setup review with proposed files, analysis settings and Confirm and save button
Review the proposed files, analysis settings and test result before saving.

After saving, click Start Engine, or import an SGF and analyze your first game: requesting analysis starts the configured engine automatically. Start engine on application launch stays disabled, so opening StoneBase alone does not start KataGo. This assistant configures the analysis engine; engines used in Play have separate settings.

If a download fails, the analysis test fails, or the selected network needs more resources than your computer can provide, the assistant does not save settings. It does not silently substitute a smaller network. Follow the message, retry when appropriate, or use manual setup to choose compatible files and, if needed, a smaller network.

Manual setup with your own KataGo files

Use the steps below if you already have KataGo, want to select a particular backend or network, or cannot complete automatic setup.

Step 1: Download KataGo

You’ll need the KataGo engine itself. A GPU is recommended (NVIDIA, AMD, or Apple Silicon) — KataGo also runs on CPU, but a GPU makes analysis dramatically faster.

As checked on 13 October 2026, the latest official release is KataGo v1.18.2, which provides CUDA builds. For TensorRT, OpenCL, Eigen/CPU and Metal, use the latest provided compatible package from v1.18.1 or the official releases page. Choose a complete package for your platform and backend; no compilation is needed.

KataGo on Windows

  • NVIDIA GPU: Prefer a v1.18.2 CUDA+cuDNN build, with cuDNN 9.8.0 or newer for transformer networks. A v1.18.1 TensorRT build is an alternative if its separate TensorRT runtime is already installed and compatible.
  • AMD GPU: Use the latest provided OpenCL binary from the official releases page.
  • CPU only: Use the latest provided Eigen binary; prefer the AVX2 build if your CPU supports it.

Extract the zip to a folder you’ll remember, such as C:\KataGo.

KataGo on macOS

KataGo runs great on all modern Macs, with key differences between Apple Silicon and Intel.

Apple Silicon (M1/M2/M3/M4): Use the latest provided KataGo v1.18.1-compatible macOS binary with the Metal backend for best performance. Install via Homebrew:

brew install katago

If you don’t use Homebrew, download the latest provided macOS binary from the official releases page and place katago in a directory on your PATH (e.g., /usr/local/bin/ on Intel Macs, or /opt/homebrew/bin/ on Apple Silicon).

To verify the binary and Metal backend, run katago version in the terminal — it should report the version you downloaded and list Metal as the detected backend.

Intel Mac: Use the latest provided macOS binary with the OpenCL backend from the official releases page.

Homebrew troubleshooting: If brew install katago fails, make sure Xcode Command Line Tools are installed (xcode-select --install). If you get a permissions error, run sudo chown -R $(whoami) /usr/local/share/man/man8 or install to a user-owned directory.

Manual install (no Homebrew): Download the latest provided macOS binary from the KataGo releases page, extract it, and place katago in a directory on your PATH (e.g., /usr/local/bin/ on Intel Macs, or /opt/homebrew/bin/ on Apple Silicon). Then make it executable:

chmod +x /opt/homebrew/bin/katago   # Apple Silicon — or /usr/local/bin/katago on Intel

Gatekeeper note: When running a manually downloaded binary for the first time, macOS may block it. Go to System Settings > Privacy & Security and click Open Anyway next to the blocked message. You only need to do this once.

KataGo on Linux

  • NVIDIA GPU: Prefer a v1.18.2 CUDA+cuDNN build, with cuDNN 9.8.0 or newer for transformer networks. A v1.18.1 TensorRT build is an alternative if its separate TensorRT runtime is already installed and compatible.
  • AMD GPU: Use the latest provided OpenCL binary from the official releases page.
  • CPU only: Use the latest provided Eigen binary; prefer the AVX2 build if your CPU supports it.

Make the binary executable with chmod +x katago and place it somewhere like ~/katago.

Current KataGo releases and transformer networks

KataGo 1.17.0 added transformer neural-network support to the C++ engine on all major backends. Transformer models are generally much stronger for the same compute budget, but they use model version 17 and will not load in an engine older than KataGo 1.17.

The official release list currently offers v1.18.2 for CUDA and v1.18.1 for the other backends listed above (checked 13 October 2026). Check the package and runtime requirements for your operating system and hardware before downloading. Extract the complete archive into a new folder rather than mixing a new executable with older DLLs.

All major backends can run transformer networks. OpenCL is broadly compatible, but is noticeably slower for transformers. On NVIDIA hardware, prefer CUDA+cuDNN with cuDNN 9.8.0 or newer. TensorRT is an alternative that needs its own compatible runtime and can take longer on the first startup. Homebrew packages can lag official releases: check katago version and the package details before loading a transformer model.

Step 2: Download a Neural Network

KataGo needs a .bin.gz neural-network file (the “brain” that evaluates positions):

  • Use the right download: On the official KataGo networks page, click Network File. Do not download the Raw Checkpoint—it is for training, not for StoneBase.
  • Use a transformer network: Choose a transformer network from the official KataGo networks page, and make sure your KataGo binary is the latest provided version for your backend.
  • Match the network to your hardware: Start with a smaller network on CPU or a modest GPU. Larger networks need more RAM/VRAM and can reduce visits per second, so benchmark a position before choosing a larger model.

Save the network file in the same folder as your KataGo binary.

Step 3: Set Up the Configuration File

KataGo uses a configuration file that controls its behavior. Example configs are included in the KataGo download.

Important: StoneBase uses KataGo’s analysis engine mode, not GTP mode. Make sure you use an analysis config file (e.g., analysis_example.cfg), not a GTP config (e.g., default_gtp.cfg). Using the wrong config format will prevent KataGo from starting correctly.

If you’re not sure which config to use, StoneBase can provide one. In the Engine settings page, click Download example KataGo analysis config to get a ready-to-use template.

Key settings to review:

  • numSearchThreads: Threads KataGo uses for search. Start with 1-2 for most GPUs.
  • maxVisits: Maximum positions to evaluate per move. 500-1000 is a good starting point.

For most users, the default analysis config works well out of the box.

Step 4: Install StoneBase

StoneBase is the free desktop app that drives KataGo and gives you a full review UI. Download the latest release from the GitHub releases page and pick the installer for your platform:

  • Windows: Download StoneBase-X.Y.Z.msi, double-click, follow the wizard.
  • macOS: Download StoneBase-X.Y.Z.dmg, drag StoneBase to Applications. On first launch, macOS may block the app — go to System Settings > Privacy & Security and click Open Anyway.
  • Linux: Download stonebase_X.Y.Z_amd64.deb and install with sudo dpkg -i stonebase_X.Y.Z_amd64.deb.

Step 5: Configure KataGo in StoneBase

Open StoneBase and navigate to Settings. In the KataGo section, configure:

  1. KataGo binary path: Point this to the katago executable from Step 1.
  2. Neural network path: Point this to the .bin.gz network file from Step 2.
  3. Config file path: Point this to the .cfg analysis config from Step 3. If you don’t have one yet, click Download example KataGo analysis config in the settings page to get a ready-to-use template.

StoneBase Engine settings showing KataGo binary path, config file, and engine status

Click Save and StoneBase will verify the connection. If everything is set up correctly, you’ll see a confirmation message.

You can also fine-tune analysis parameters (max visits, threads, variations) under the Analysis tab:

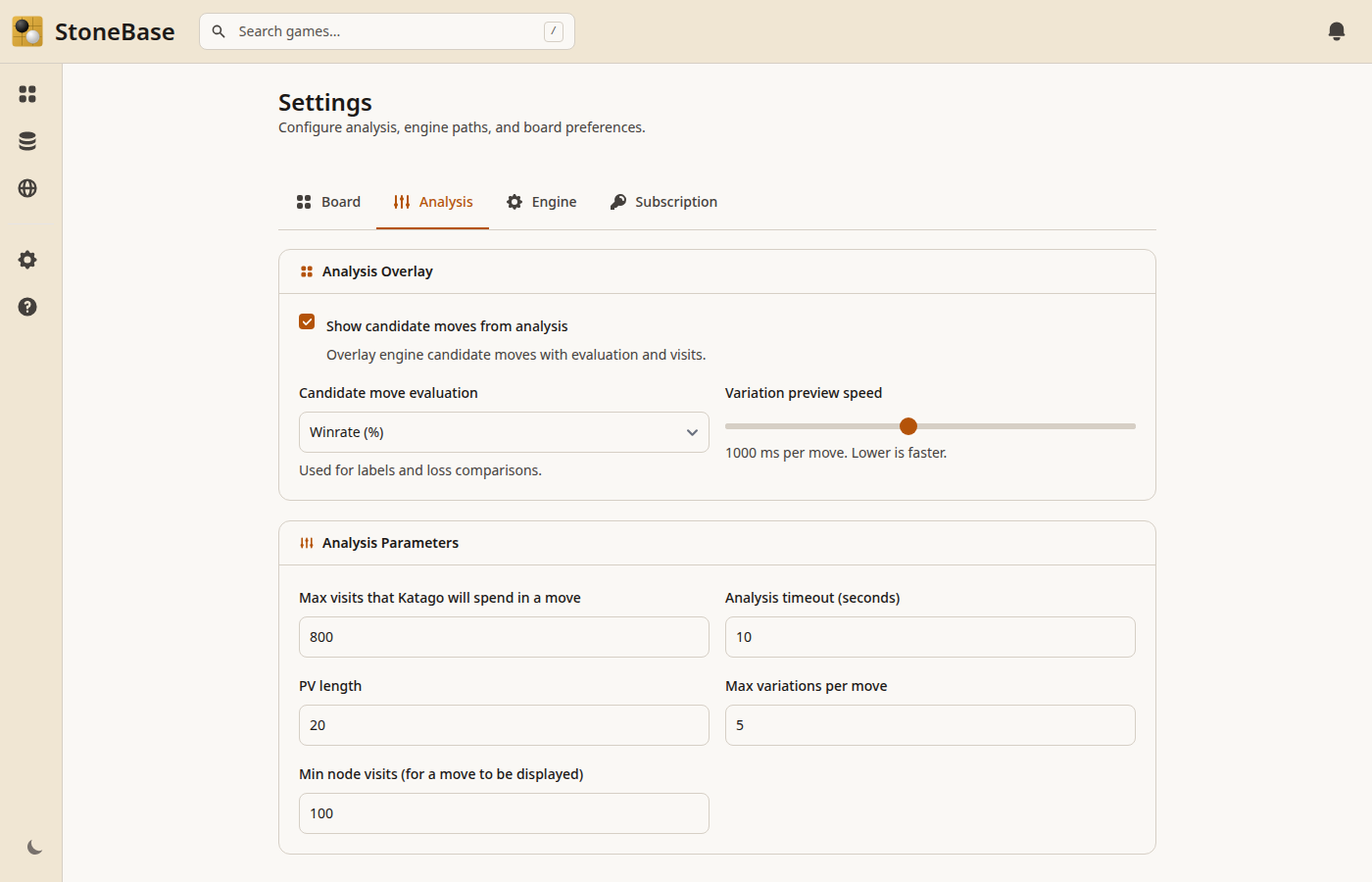

StoneBase Analysis settings with visit count, threads, and variation parameters

Step 6: Analyze Your First Game

With KataGo configured:

  1. Import an SGF file or select a game from your library.
  2. Click the Analyze button in the toolbar.
  3. KataGo will evaluate each move, showing:
    • Win rate: the probability of winning for each player
    • Score estimate: the projected score difference
    • Candidate moves: the AI’s top move suggestions with their evaluations
    • Principal variation: the expected sequence of play

Navigate through the game to see how the evaluation changes at each move. Large drops in win rate highlight your biggest mistakes — those are the positions worth studying most carefully.

New to AI analysis? Read our short guide on interpreting KataGo win rate and score estimates before drawing conclusions from the numbers — misreading a 5% swing as a “blunder” is a common beginner trap.

Troubleshooting

KataGo won’t start: Make sure the binary path points to the actual katago executable (not the folder). On macOS/Linux, you may need chmod +x katago.

Analysis is very slow: If you’re running on CPU, analysis will be significantly slower. Choose a smaller network from the official networks page, or use a GPU.

“Failed to load neural net” error: Double-check the network file path and that the network version matches your installed KataGo binary. Transformer networks require KataGo 1.17 or newer, so use the latest provided binary for your backend.

Wrong score estimates: If win rates and scores seem off, check that the rules setting for your game matches the rules it was actually played under. Japanese and Chinese rules can produce different evaluations for the same position. You can configure rules per game in StoneBase’s game settings.

Frequently Asked Questions

Does KataGo work on Mac?

Yes. On Apple Silicon Macs (M1/M2/M3/M4), use the latest provided macOS binary with the Metal backend — installable with brew install katago. On Intel Macs, use the latest provided macOS binary with the OpenCL backend.

Do I need a GPU to run KataGo?

No, KataGo runs on CPU using the Eigen backend, but analysis will be significantly slower. Any modern NVIDIA, AMD, or Apple Silicon GPU will give you a large speedup — for serious review, a GPU is strongly recommended.

How do I update KataGo?

Download the latest provided binary for your backend from the KataGo releases page and replace the complete extracted package, not only the katago binary. Existing configs and conventional networks often remain usable, but transformer networks require KataGo 1.17 or newer. Check the release notes and test the setup before deleting your working installation.

Is KataGo free?

Yes, KataGo is fully open-source and free to use. StoneBase is also free to download — a Pro tier unlocks batch analysis and other advanced features, but single-game review with KataGo is free forever.

Which KataGo network should I use?

Start with a .bin.gz Network File from the official KataGo networks page. For transformer-model strength, use a transformer network from that page with the latest provided KataGo binary for your backend. Choose a smaller network on CPU or a modest GPU, then benchmark before moving to a larger model.

KataGo vs Leela Zero: which is better for game review?

KataGo is actively maintained, supports score estimation (not just win rate), handles different rulesets (Japanese/Chinese/Korean), and is generally considered stronger than Leela Zero today. For modern Go game review, KataGo is the recommended choice.

Can I use KataGo online without installing it?

StoneBase is a desktop app by design — your games and analysis stay private on your machine. We are exploring cloud-hosted KataGo analysis for the future, but it’s not available yet.

In the meantime, the desktop setup is simpler than most people expect: this guide walks you through every step, and once configured, you get unlimited free AI analysis with full privacy. If you already have a GPU, the desktop app also tends to be faster than any web-based option since there’s no network latency.

There are third-party web services like Online KataGo or AI Sensei that offer browser-based KataGo analysis without installation — but they lack StoneBase’s library management, position search, and local privacy guarantees.

What’s Next?

Once KataGo is running, you can:

  • Review individual games to find your mistakes and missed opportunities
  • Batch-analyze your entire library (Pro feature) to get AI evaluations on all your games at once
  • Explore variations by placing stones and seeing how KataGo evaluates different continuations

The combination of your own reading ability and KataGo’s superhuman evaluation is the fastest way to identify weaknesses in your game and improve.
